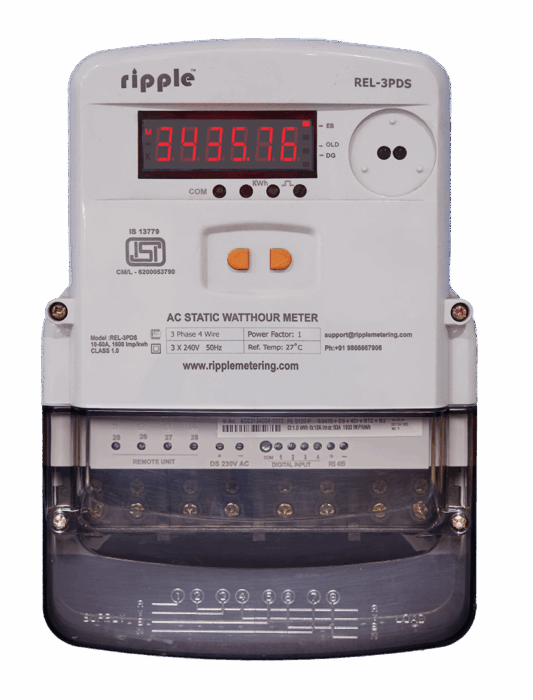

Wireless SMART Energy METER
Powered by NB-IoT & LoRaWAN
The Ripple Smart Energy Meter is an IoT-enabled device designed to provide accurate, real-time measurement of energy consumption for both residential and industrial users. Powered by NB-IoT and LoRaWAN wireless technologies, it eliminates the need for manual meter reading by transmitting data automatically and securely to utility providers.
- Available in Single-Phase and Three-Phase Models
- Ideal for Residential, Commercial, and Industrial Use
- Supports IoT & LoRaWAN for Smart Connectivity
- Accurate Billing with Real-Time Monitoring
- Prepaid and Postpaid Energy Management
- Compatible with Smart City and Utility Deployments
Smart Energy Meter is powered by
- Automated Meter Reading (AMR)
- Advanced Meter Infrastructure (AMI)
- Automated Metering Management (AMM)
Key Features of Ripple Smart Energy Meter
Pay-As-You-Go
Enjoy simple and flexible pay-as-you-go payments
Dual Source Measurements
Provides a dual source measurements Up to 80A whole current / CT operated (for BIS upto 60A)
Anti-Tamper
Anti-tamper Features provided in the meter as per Indian standards.
Overvoltage Protection
Offers reliable overvoltage protection for enhanced safety
Overload Tripping
Built-in overload tripping safeguards both EB and DG connections
Multi-Parameter Monitoring
Monitors and display the balance, VLL, VLN, A, Hz, W, PF, VA, kWh EB & DG.
Energy Meter Specifications
Specification | Description |
|---|---|
Accuracy | Class 1.0 (default) as per IS13779/25884, Class 0.5 as per IS14697 (Optional) |
Sensing / Measurement | True RMS, 1 Sec updatetime. 2 Quadrant Power & Energy |
Input Voltage | 4 Voltage inputs (V1, V2, V3, VN) Programmable 110 or 415V LL Normal (Range 80 to 550V LL). Primary programmable up to 999kV. Burden: 10VA MAx |
Input Frequency | 45 - 65Hz |
Input Current | Current inputs (V1, V2, V3, VN) whole current 10/60A or CT oparated 5A. Overloaded: 3 times for 3s. Burden: 0.5VA Max. per phase. |
Whole Current CT Operated | 5/30A or 10/60 or 20/80A / _ 5A |
CT PT Ratio Max | 2000 MVA Programmable for CT operated. |
Display Resolution | 1 row, 6 digits, (integrated 6 digits) 10mm |
Communication | RS485, GPRS, LoRa & NB-IoT |
Weight | 3 phase: unpacked - 1650 gms, Packed - 1850 gms Single phase: unpacked - 670 gms, 750 gms |
Torque | 2 N-m |
Wire gauge | 16 Sq.mm (6 AWG) |
Mechanical Specifications

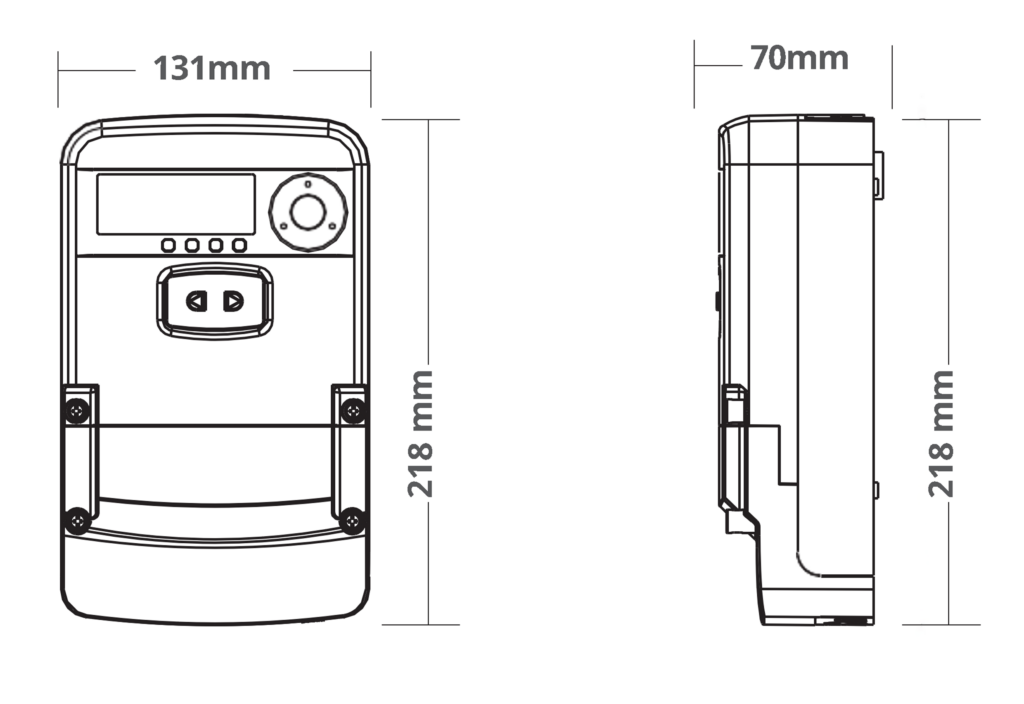

Single Phase: Dimension Bezel: 218 x 131 mm
(Depth 70mm)
Three Phase: Dimension Bezel: 270 x 171 mm
(Depth 69mm)
------------------ Approvals & Certifications ------------------
BIS 13779:1999
The Bureau of Indian Standards
ERTL
Electronics Regional Test Laboratory
CPRI
Central Power Research Institute
WPC
Wireless Planning and Coordination

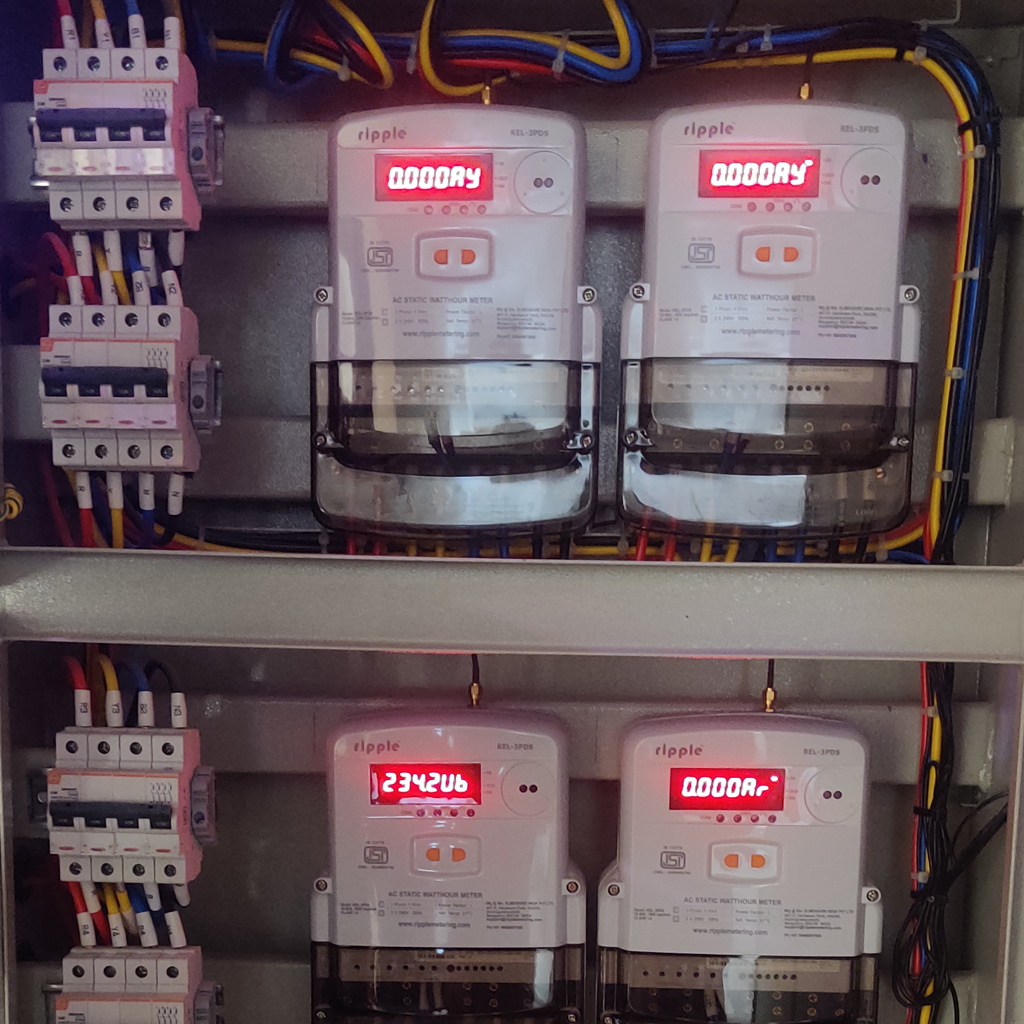

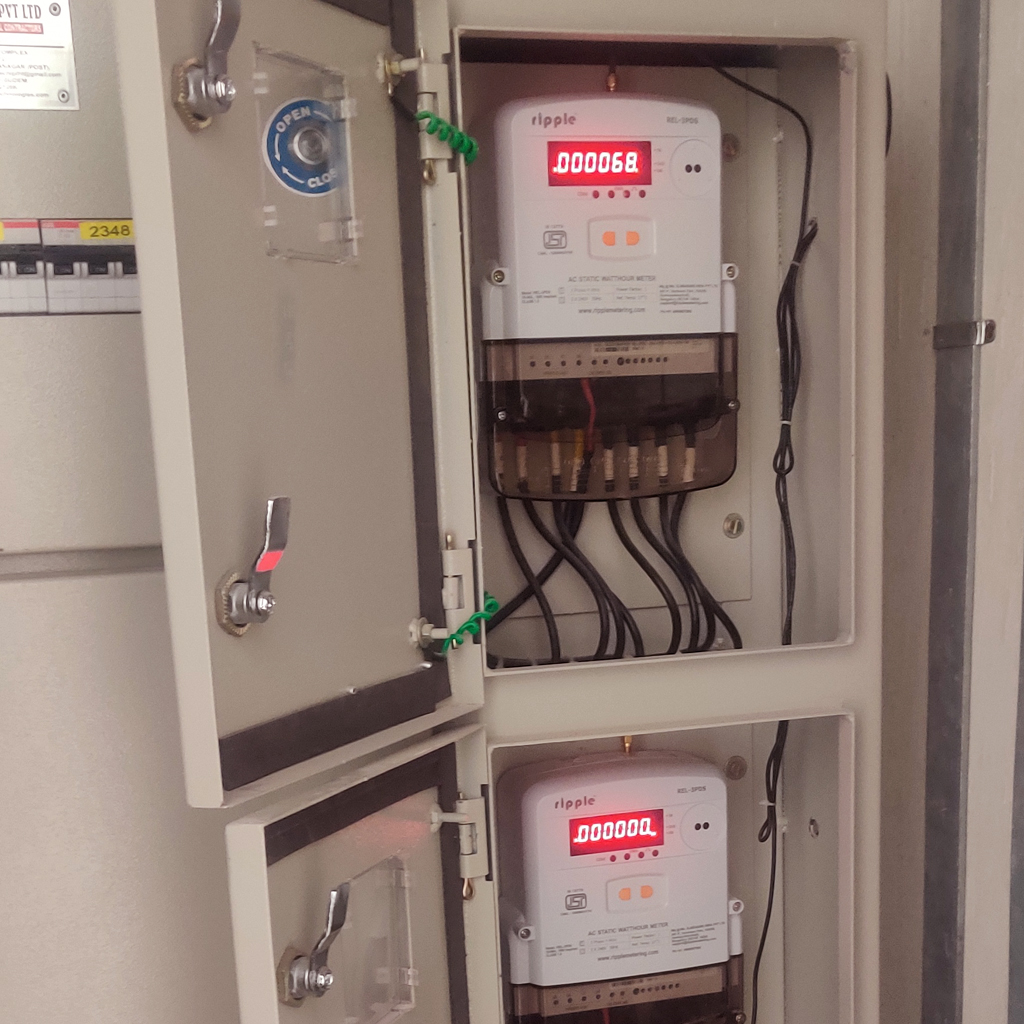

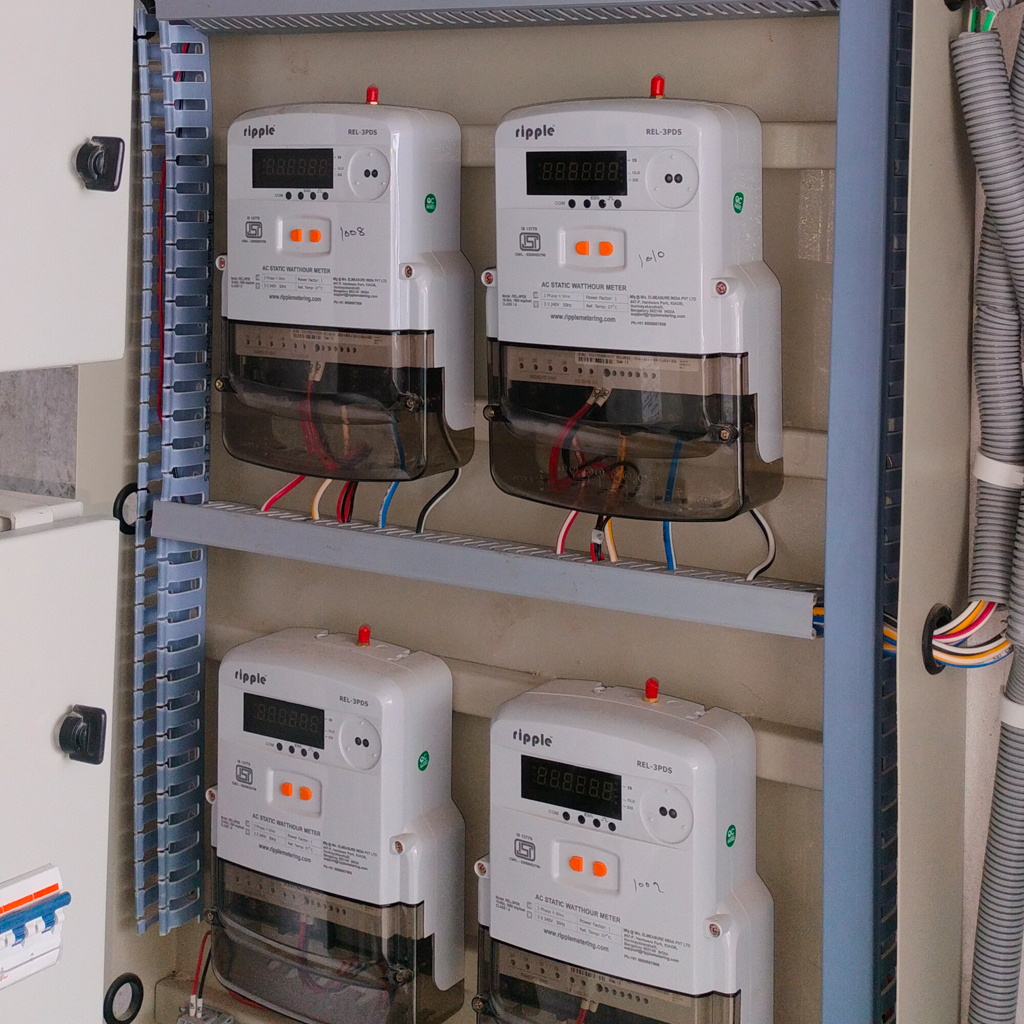

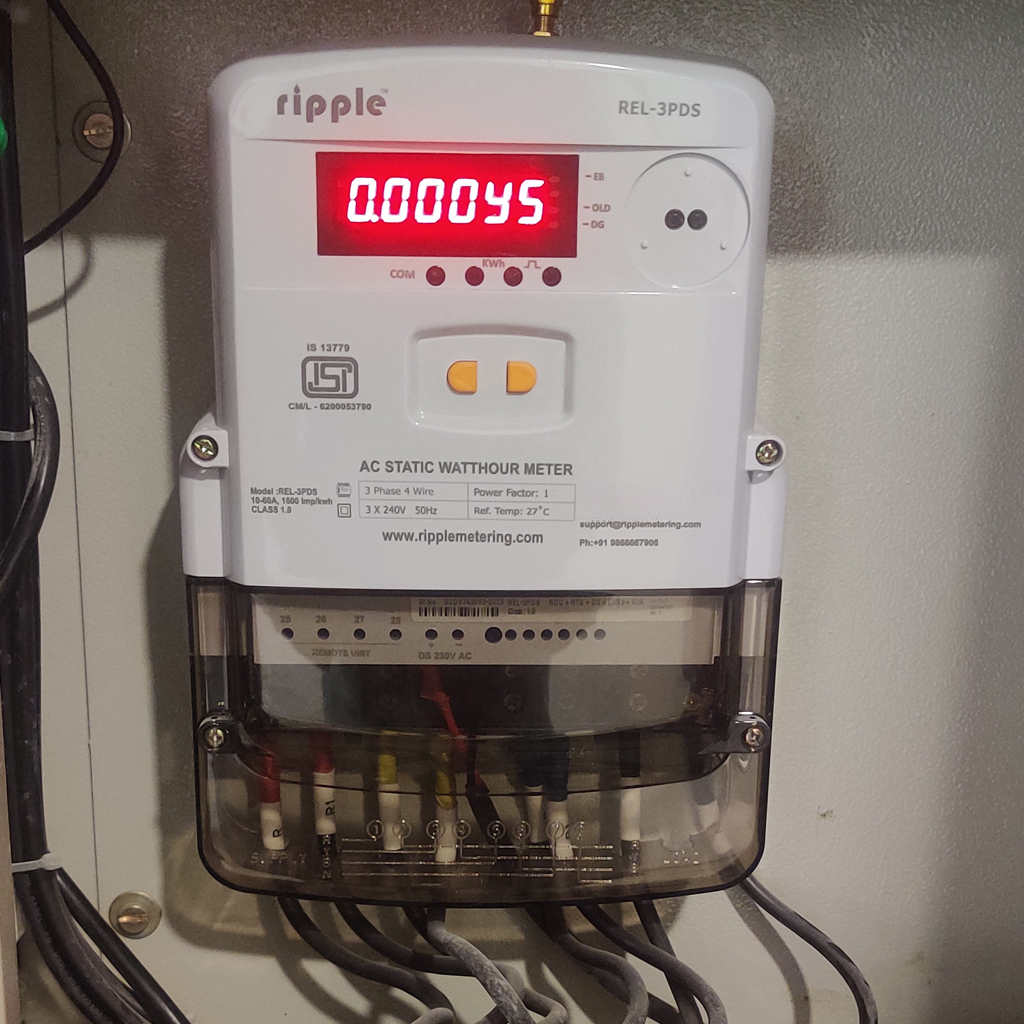

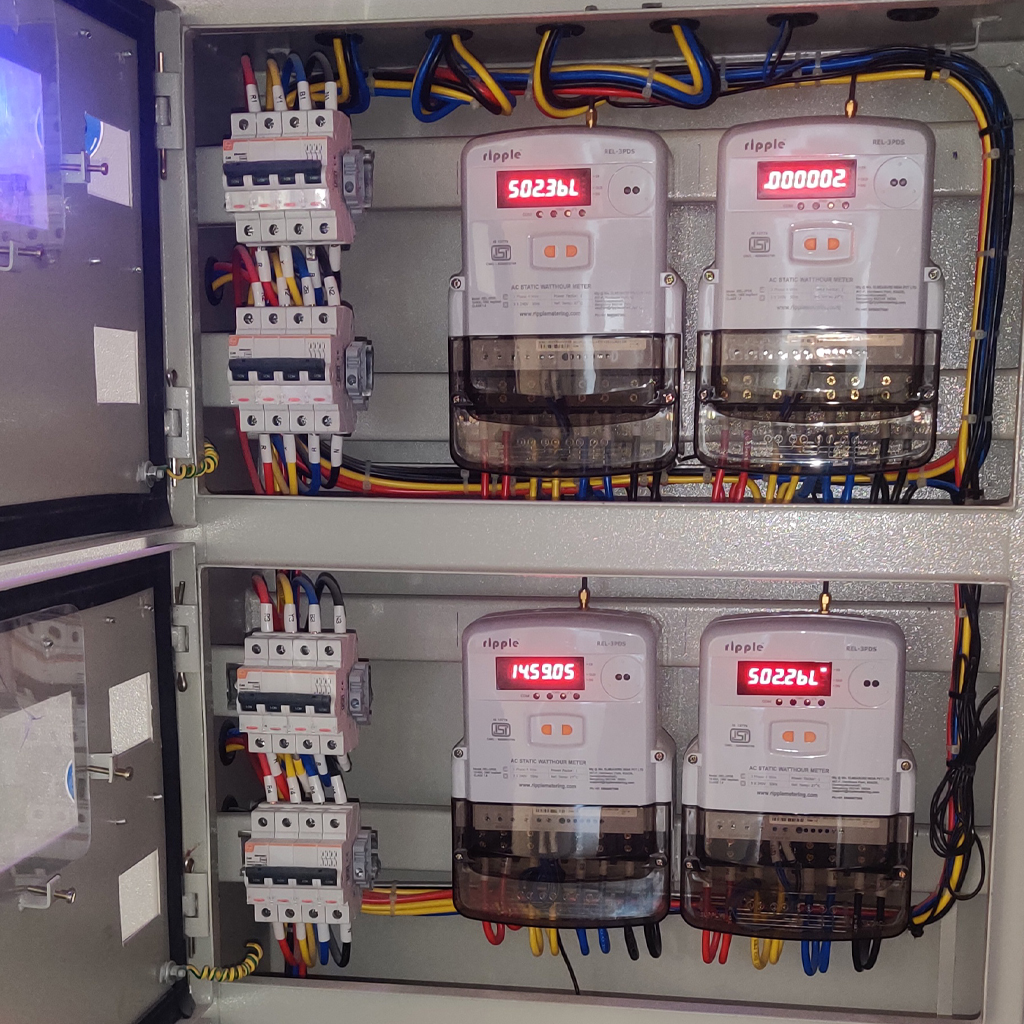

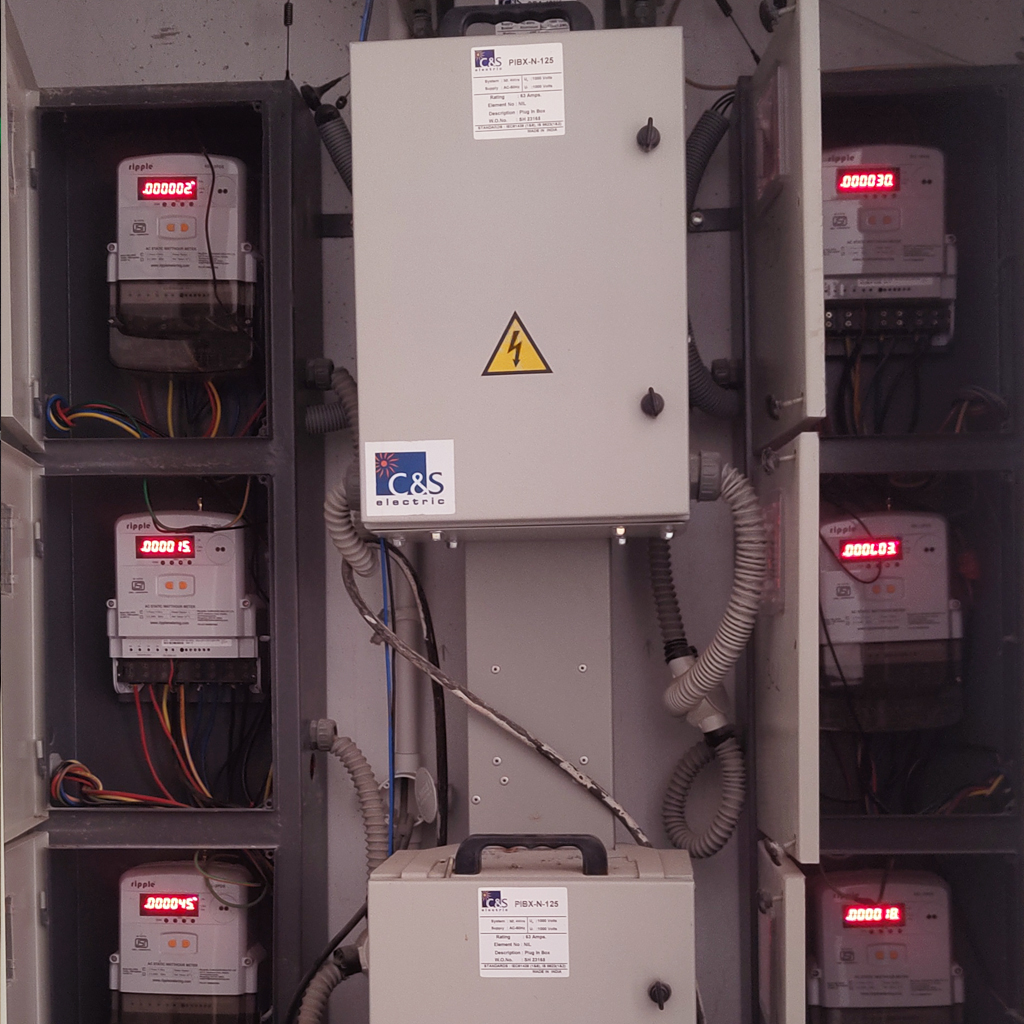

----------------------------- Our Installations -----------------------------
